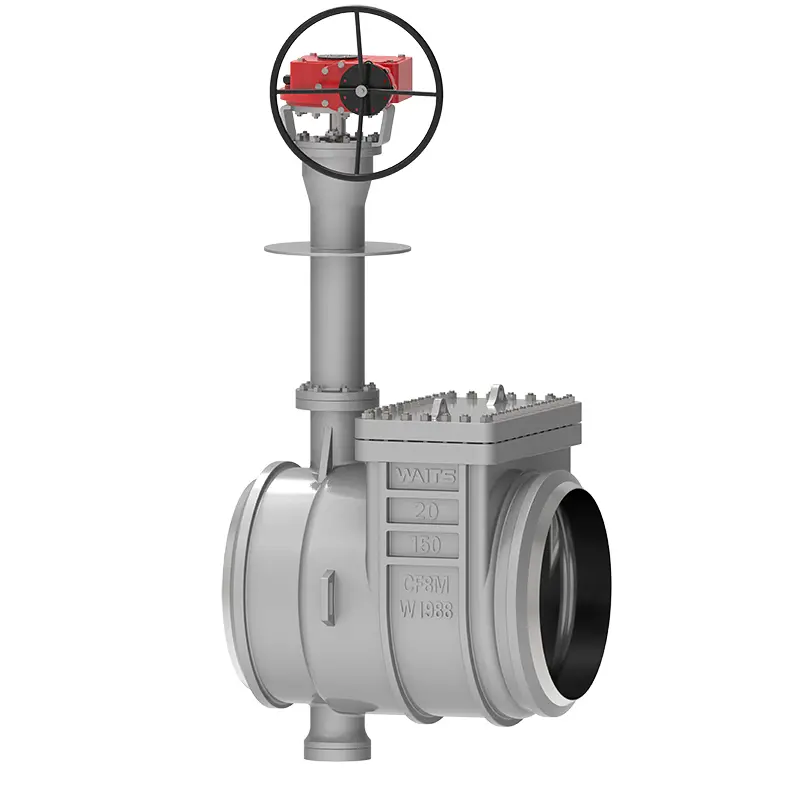

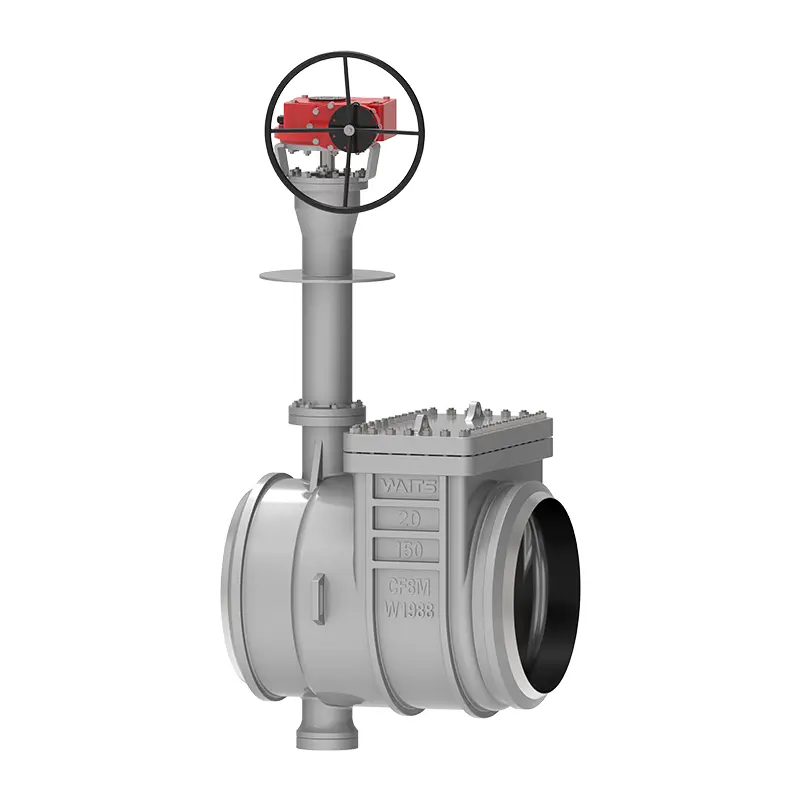

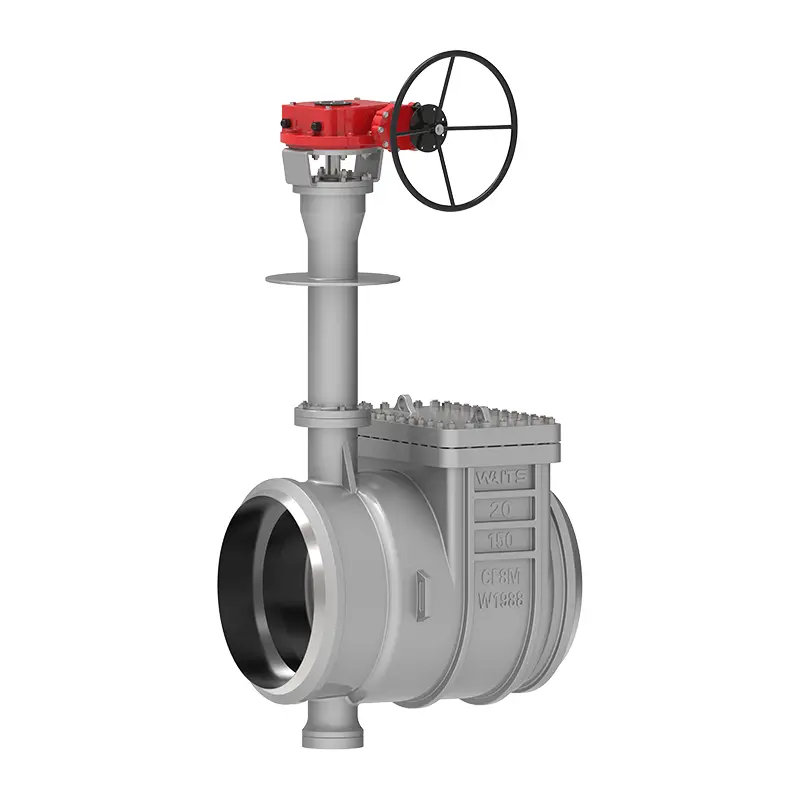

Válvula de borboleta de entrada criogênica

A válvula de borboleta de entrada superior criogênica, uma válvula produzida pela base de produção profissional da Waits, possui suprimento estável e alto desempenho, especialmente adequado para ambientes de temperatura extremamente baixa. Estamos cientes de que a qualidade do produto é o núcleo de produção e vendas e fornecerá um serviço abrangente pós-venda, na esperança de estabelecer um relacionamento cooperativo de longo prazo com você.

Enviar consulta

Descrição do produto

The cryogenic top entry butterfly valve is a long-life, energy-saving butterfly valve. We actively introduced new technologies during design and production, and a team of industry professionals monitored the instructions throughout the process.
The components of this butterfly valve mainly include valve body, butterfly plate, sealing ring, transmission mechanism, etc. The structural design adopts two-dimensional or three-dimensional eccentric principle, and a new process of elastic sealing or hard and soft multi-level sealing compatibility is used to reduce the torque in operation, which is more labor-saving and energy-saving.
At the same time, the overall corrosion resistance, high temperature resistance and wear resistance of the cryogenic top entry butterfly valve are also excellent, which is enough to cope with various complex working conditions without frequent maintenance or replacement.

Implementation Standards

Design Standard	API 609, BS 6364
Flange Standard	ASME B16.25 (BW)
Fire Safe	API 6FA
End Connection	Double Flange, BW, Wafer, Lug, etc.
Inspection & Test	API 598 & BS 6364
Low Temperature Test Acceptance	GB/T 24925, BS6364, ISO 28921-1, MSS-SP-134, MESC SPE77/200
Face to Face	API 609, ASME B16.10, EN 558
Pressure and Temperature Levels	ASME B16.34
Low Leakage Standards	ISO 15848-1, API 622
Anti-Corrosion Design	NACE MR 0103, NACE MR 0175

Application

Size	3"-52", DN80-DN1300
Pressure Rating	Class 150-900, PN16-PN160
Operating Temperature	-196°C ~ 150°C
Application Range
Operator	Gear, Electric, Pneumatic, Bare Stem, etc.
Body Material	A351 CF3, CF8, CF3M, CF8M, etc.
Valve Plate	A351 CF3, CF8, CF3M, CF8M, etc.
Valve Seat	Stainless steel + STL, Stainless steel + graphite
Valve Stem	XM-19, Gr660 Ty2/HT

Performance Features

1. The cryogenic top entry butterfly valve is designed with double bevel edges and small eccentricity. Its torque reaches the leading level (40%~60% of its peers), and the matching electric and pneumatic prices are very advantageous;
2. The valve seat and sealing ring are designed as separate parts, and the valve has an inspection port for easy maintenance and replacement.
3. The valve plate and valve stem are designed with double keys up and down, which will not get stuck at low temperatures, and have an API 609 anti-flying design;
4. The sealing surface has almost zero wear and a long service life;
5. It has a wide range of applications, including ultra-low temperature devices such as LNG, propylene, and ethylene;
6. It leaks API598 at room temperature and 1/3 of BS6364 at low temperatures. It meets the positive and reverse sealing requirements of BS6364 at low temperatures;
7. The valve body and valve seat are separate components, and the valve seat and sealing ring can be made of different materials;
8. Three eccentricities: the center line of the shaft deviates from the center line of the sealing surface, the center line of the shaft slightly deviates from the center line of the pipeline, and the center line of the valve body sealing surface (oblique cone) forms an angle position with the center line of the pipeline;

Cryogenic Top Entry Butterfly Valve
